T&C LAB-AI
Robotics
Computer Graphics and Programming
Lecture 9
Texture Mapping
Jeong-Yean Yang
2020/12/8
1
T&C LAB-AI
What is Texture Mapping?
0
2
T&C LAB-AI
Robotics
OpenGL supports for
Three Colors + Texture
• Three Colors
– Ambient, diffuse, specular
3
• Texture(bitmap)
– Image
T&C LAB-AI
Robotics
Texture(Image) mapping
is added on Diffuse color
• Colors with texture mapping
4
ˆn
Image, I(x,y)
ˆi
ˆr
camera
ˆ : Illumination(light source)
ˆ : Reflection
ˆ :
i
r
n normal
ˆ ˆ
diffuse
cos
ˆ ˆ
color
Image diffuse
( , )
i n
I x y
i n
T&C LAB-AI
How to handle Image buffer
1
5
T&C LAB-AI
Robotics
Various Image Types
• Various types of Image formats
– Bmp, jpg, gif, png, pcx, tif, and so on
• BMP, JPG, PNG are famous image formats in Graphics
– 24bit: BMP, JPG , 32bit: PNG
• One pixel of image is described by 8, 16, 24, 32 bit.
– RGB = 24bit
– RGBA = 32bit
– Gray = 8bit
– RGB(RGB565) = 16 bit
• R =0~31
• G=0~63
• B=0~31
6
OLED pixel
1 pixel =
T&C LAB-AI
Robotics
This Class Provides Image Library
• CImagew is a wrapper class for convenient purpose
– Easy to access RGB or RGBA buffer
• From Lecture 9, we will use ‘lib2’ instead of ‘lib’
7
BMP
JPG
PNG
JPG
Decoder
Buffering
Zip
Decoder
CImage.dll
CImagew
Wrapper
class
T&C LAB-AI
Robotics
‘lib2’ for Texture Mapping
• lib for solid color
• lib2 for image handling
• Changes in lib2
8
T&C LAB-AI
Robotics
Ex) uRT-01-Basic
Path Setting for Compiling and Linking
• “../../lib2” is added for “Additional Library Directories”
9
lib2
Cimage.lib
Cimagew
cimage.lib for cimage.dll
Is added
T&C LAB-AI
Robotics
Ex) uRT-01-Basic
DLL : Interface library and header file
• If we use DLL,
– We need interface library and wrapper class
• glew32.dll interface(glew32.lib) + include(glew.h)
• Cimage.dll interface(cimage.lib) + Cimagew class
10
lib2
Cimage.lib
Cimagew
uRT-01
with
Cimage.dll
T&C LAB-AI
Robotics
Ex) uRT-01-Basic

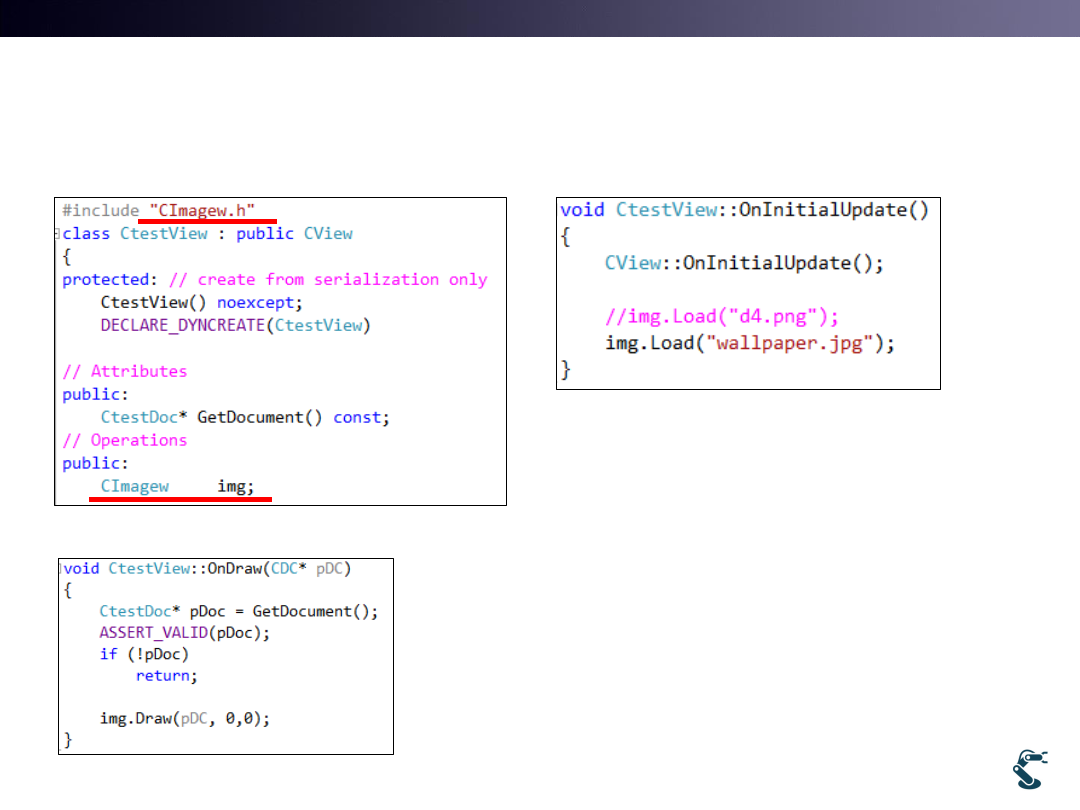

Image Loading
• 1. Declare CImagew
• 2. Image loading
• 3. Draw an image at
point (0,0)
11
1. Variable Declaration
3. Draw function
2. Image loading
T&C LAB-AI
Robotics

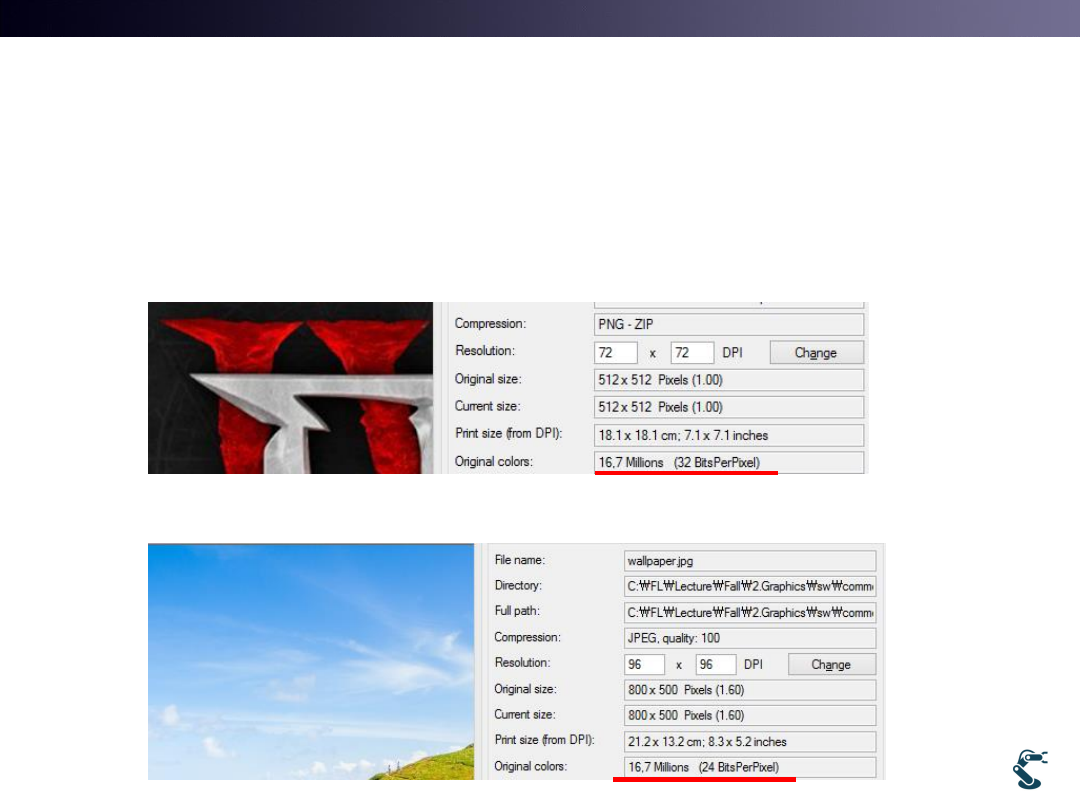

Image Buffering
• Confirm Image bit first before image buffering.
• Ex) d4.png 32bit RGBA
• wallpaper.jpg 24bit RGB
12
T&C LAB-AI
Robotics
Ex) uRT-02-Buffering-24bit-BGR
• 8bit Image buffering
• 24 bit image buffering
13
(0,0) (1,0) (2,0) (3,0)
(0,1) (1,1) (2,1) (3,1)
(0,2) (1,2) (2,2) (3,2)
Width=4
Height=3
( , ) :
I x y
n
w y
x
) (2,1)
[ ]
[4 1 2]
ex I
p n
p
Image buffer, p
(0,0) (1,0) (2,0) (3,0) (0,1) (1,1) (2,1) (3,1) (0,2) (1,2) (2,2) (3,2)
P[0] P[1] P[2]
P[6]
(0,0)
(1,0)
(2,0)
(3,0)
(0,1)
(1,1)
(2,1)
(3,1)
(0,2)
(1,2)
(2,2)
(3,2)
(0,0)
(0,1)
(0,2)
(0,0)
(0,1)
(0,2)
(1,0)
(1,1)
(1,2)
(1,0)
(1,1)
(1,2)
(2,0)
(2,1)
(2,2)
(2,0)
(2,1)
(2,2)
(3,0)
(3,1)
(3,2)
(3,0)
(3,1)
(3,2)
R( , ) : r
3
3
G( , ) : g
3
3
1
B( , ) : b
3
3
2
x y
w y
x
x y
w y
x
x y
w y
x
) R(2,1)
[ ]
[3 4 1 3 2]
G(2,1)
[g]
[3 4 1 3 2 1]
B(2,1)
[b]
[3 4 1 3 2 2]
ex
p r
p
p
p
p
p
T&C LAB-AI
Robotics

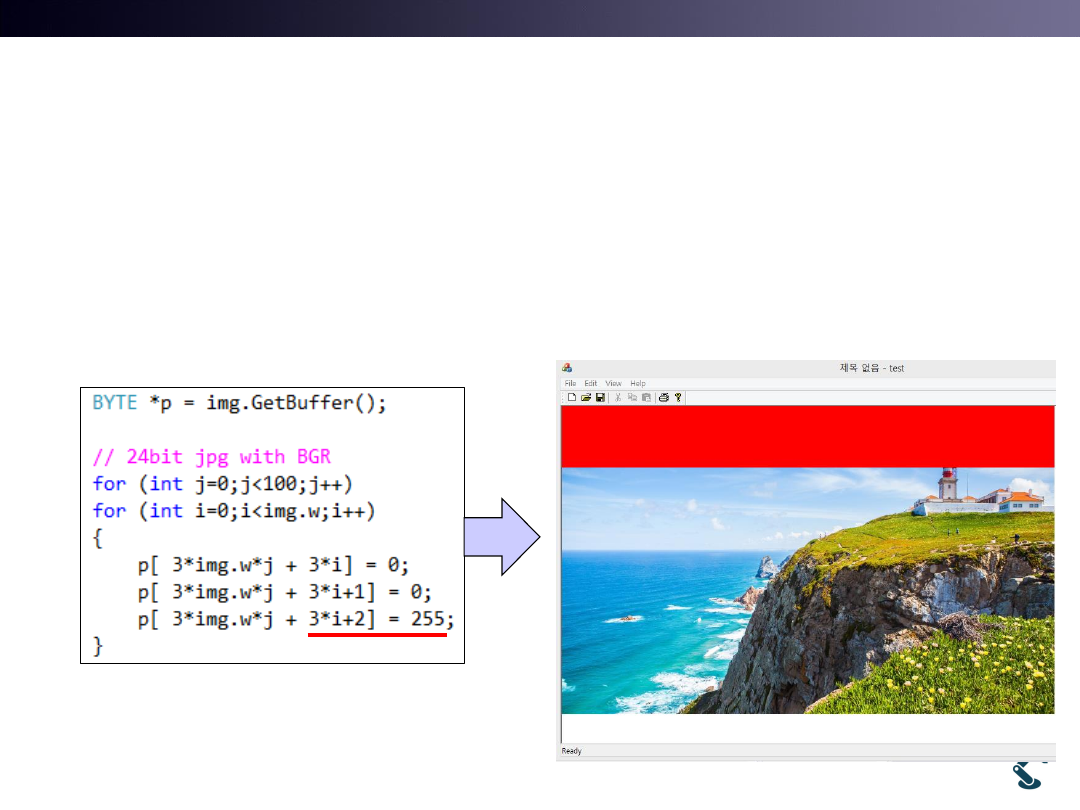

JPG uses BGR instead of using RGB
• JPG decoding uses BGR in general
– For proofed Image processing, you must understand everything
14
JPEG is NOT R8G8B8,
but B8G8R8 model
T&C LAB-AI
Robotics
32bit RGBA Vs. BGRA
• Ex) uRT-03-Buffering-32bit-BGRA
• For example, “wallpaper32.png” is 32 bit PNG
15
R( , ) : r
4
4
G( , ) : g
4
4
1
B( , ) : b
4
4
2
A( , ) : a
4
4
3
x y
w y
x
x y
w y
x
x y
w y
x
x y
w y
x
B( , ) : r
4
4
G( , ) : g
4
4
1
R( , ) : b
4
4
2
A( , ) : a
4
4
3
x y
w y
x
x y
w y
x
x y
w y
x
x y
w y
x
R8G8B8A8
B8G8R8A8
T&C LAB-AI
Robotics

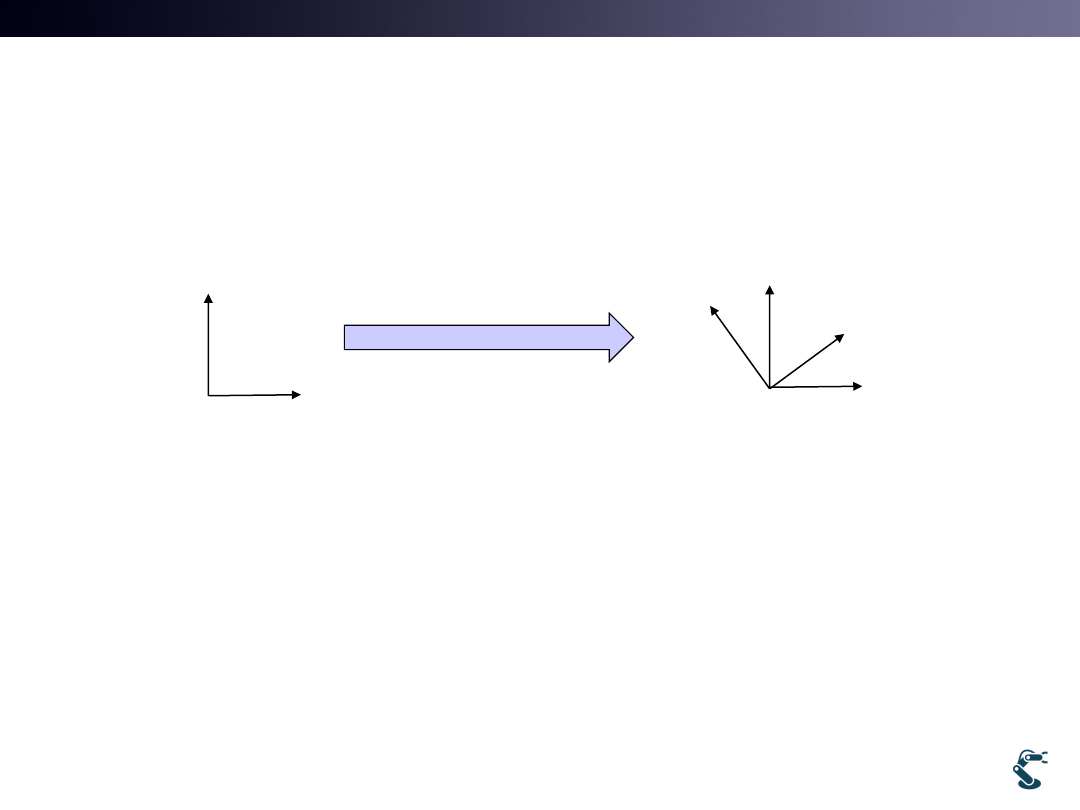

RGB Color Space
• RGB is linear? Is it Independent?
• Color that we see is NOT linear
– Red(10%) + Red(20%) Red(30%) Non Linear
• RGB buffer in images are linear
• Thus, Nonlinear Color Scene Capture Storing
linearly RGB buffer is linear
16
x
y
Transform, T
x
y
x’
y’
ˆ
ˆ
ˆ
'
T
X
x
y
X
TX
Linear vector space
T&C LAB-AI
Robotics

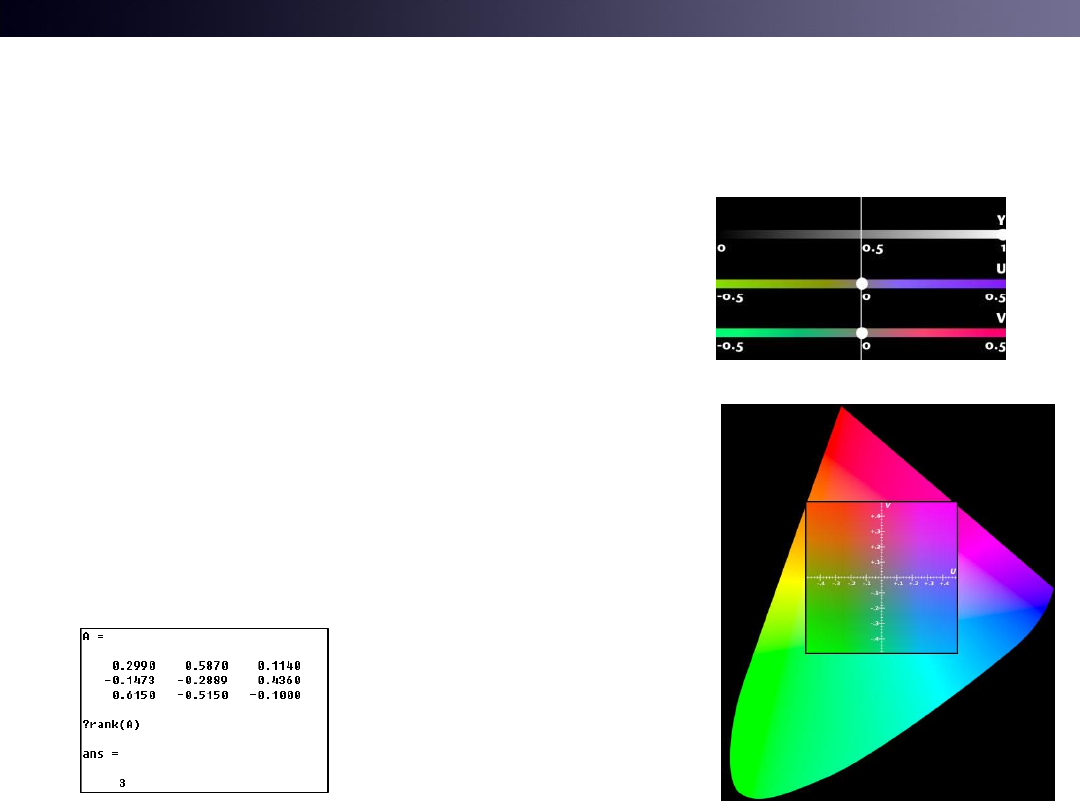

Y’UV Space
• YUV is transformed by Y’UV space
– Y’ : luminance component
– UV: Chrominance component
– U :Blue projection
– V: Red projection
17
'
0.299
0.587
0.114
0.1473
0.28886
0.436
0.615
0.51499
0.10001
Y
R
U
G
V
B
Y=1
u
v
Rank =3
Y’UV is a linear transform of RGB
T&C LAB-AI
Texture Mapping in OpenGL
with lib2
2
18
T&C LAB-AI
Robotics
19

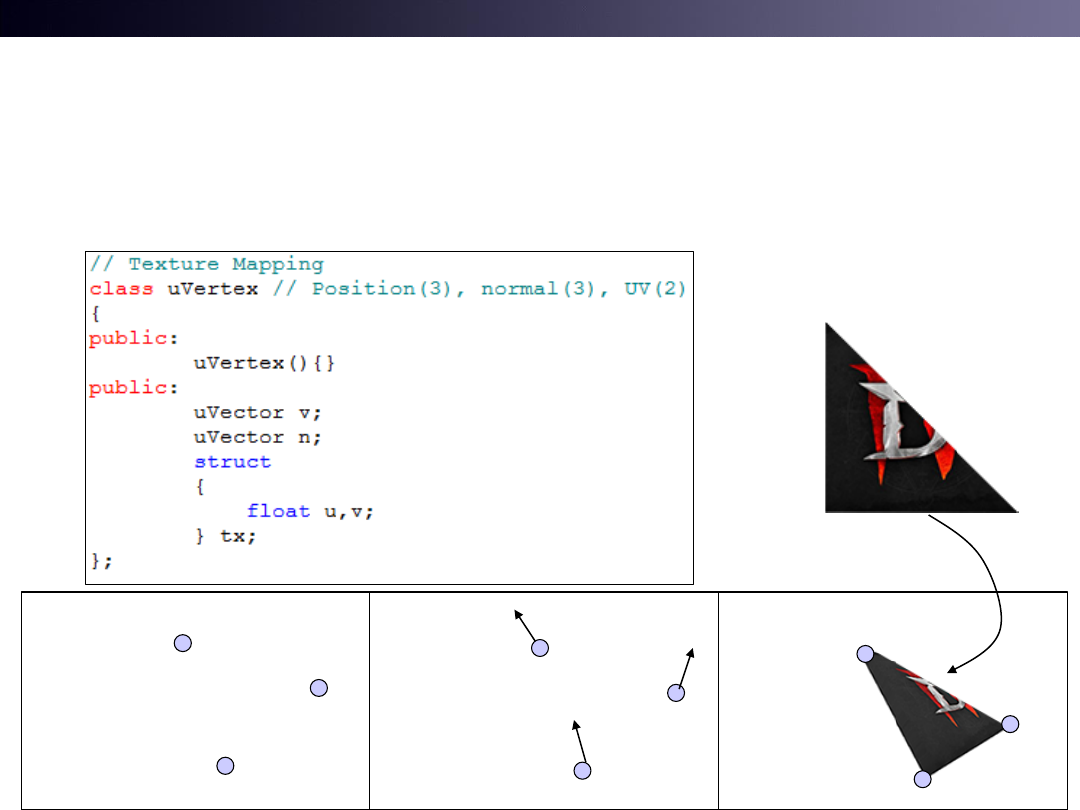

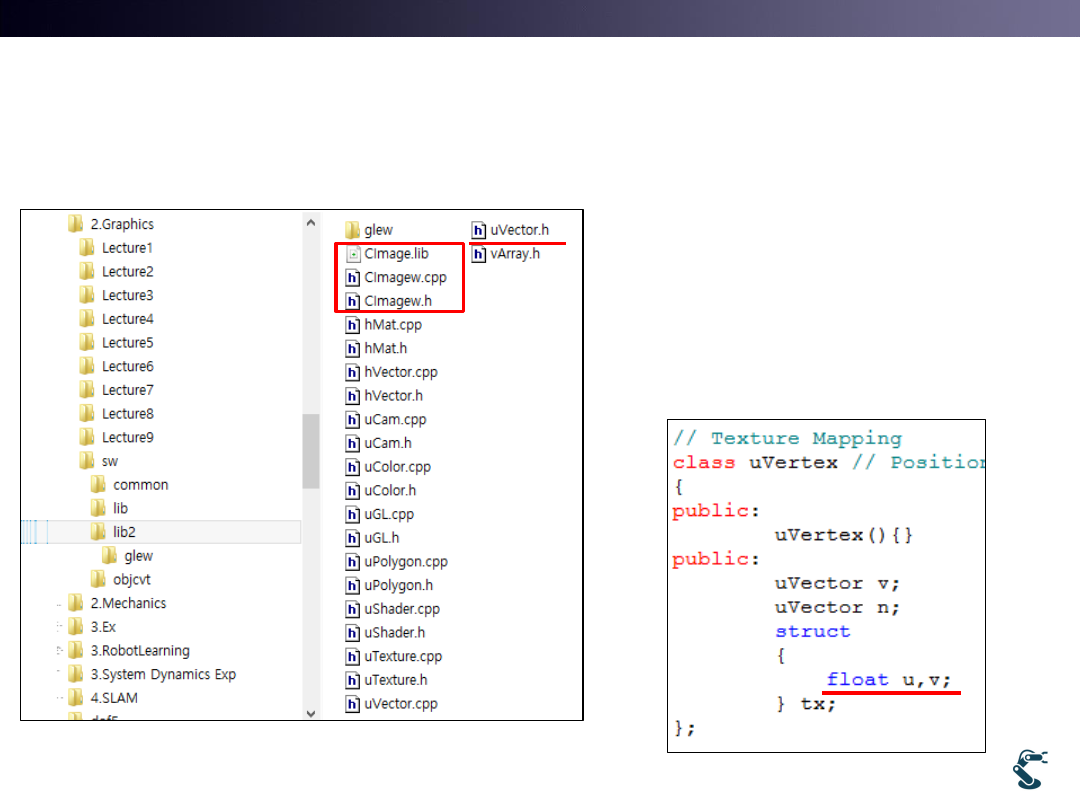

New uVertex class
for Texture Mapping (UV mapping)
• uVertex in lib2
ˆ
f
n
f
s
t
Three
Points
Three
Normals
ˆ
s
n
ˆ
t
n
Three
UVs for
position
(u,v)
(0,1)
(0,0)
(1,1)
T&C LAB-AI
Robotics

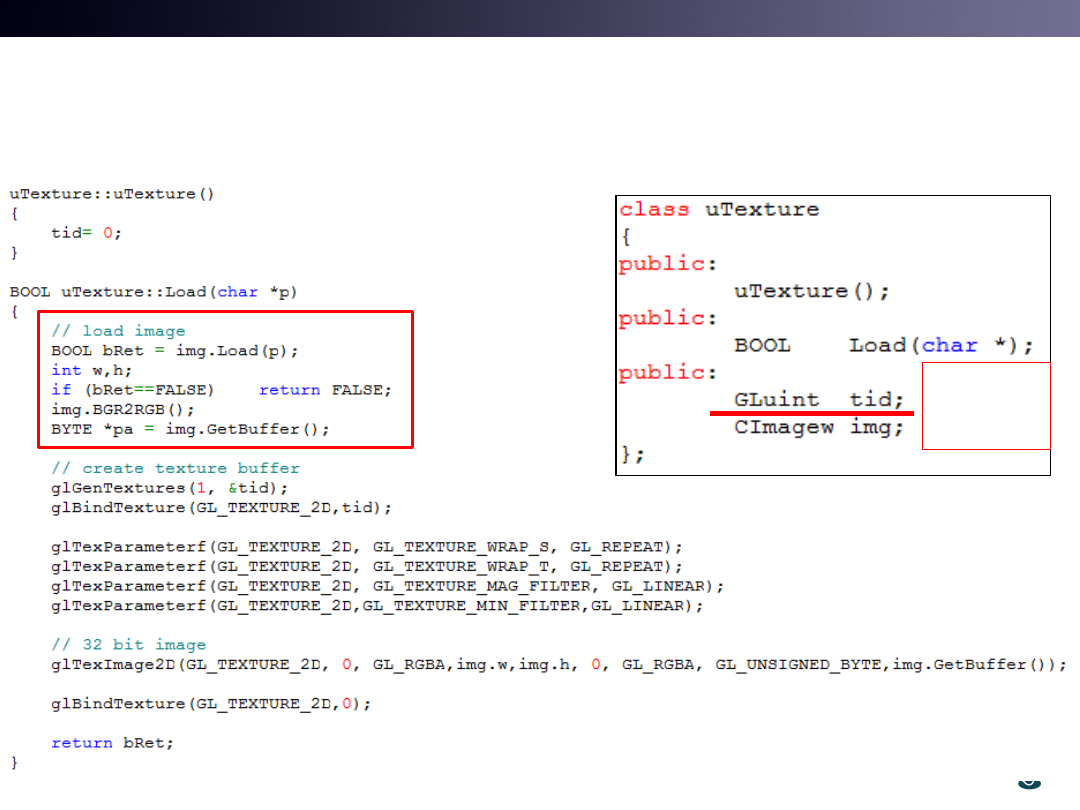

uTexture for Image Loading
20
OpenGL
Texture
handle
loading
and
buffering
T&C LAB-AI
Robotics

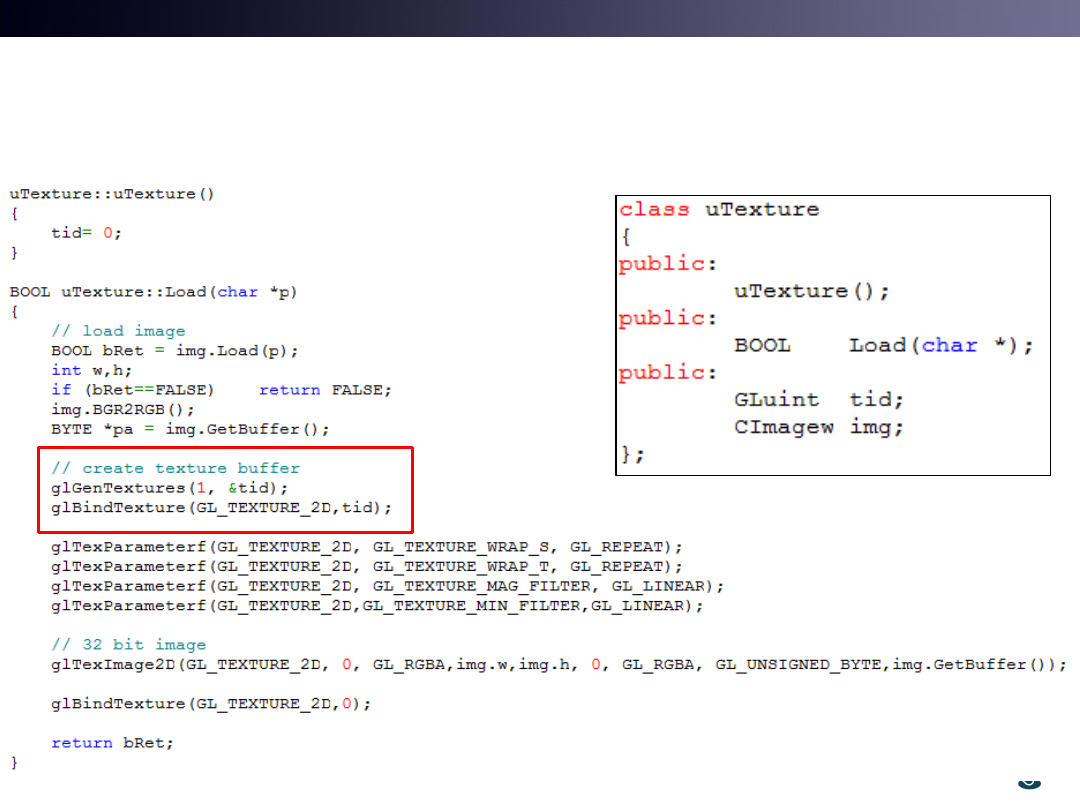

uTexture for Image Loading
21
Generate
texture
handle
T&C LAB-AI
Robotics

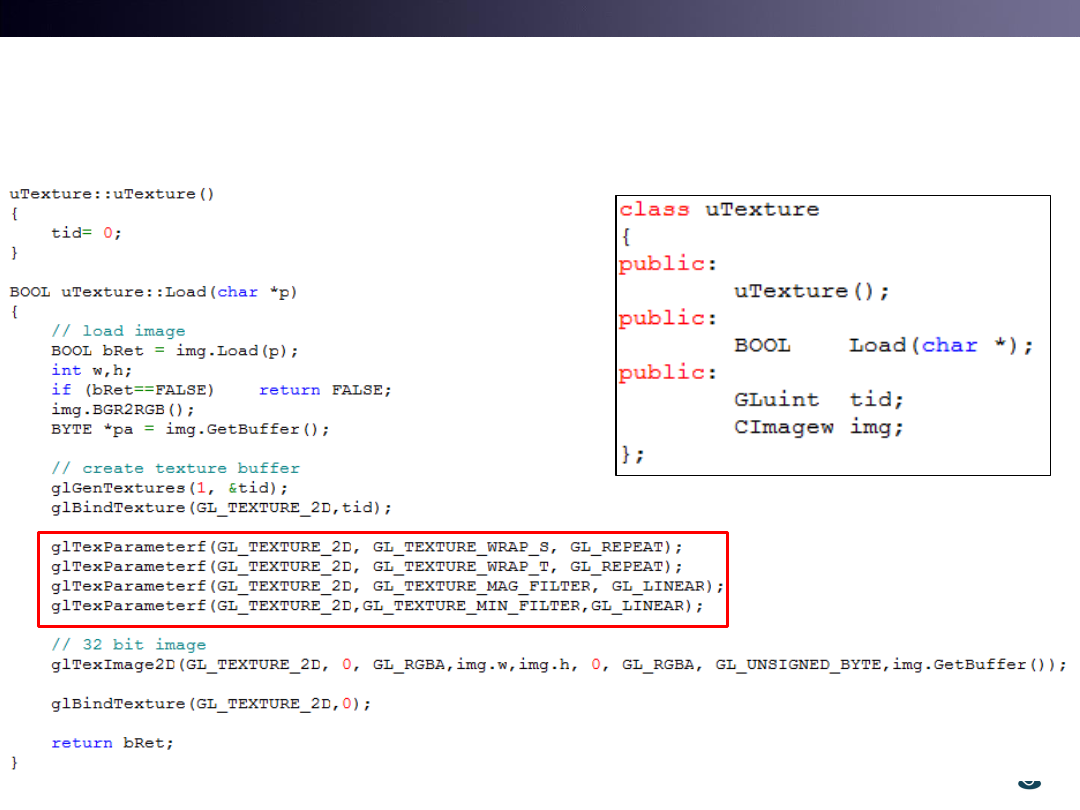

uTexture for Image Loading
22
Texture setting
T&C LAB-AI
Robotics

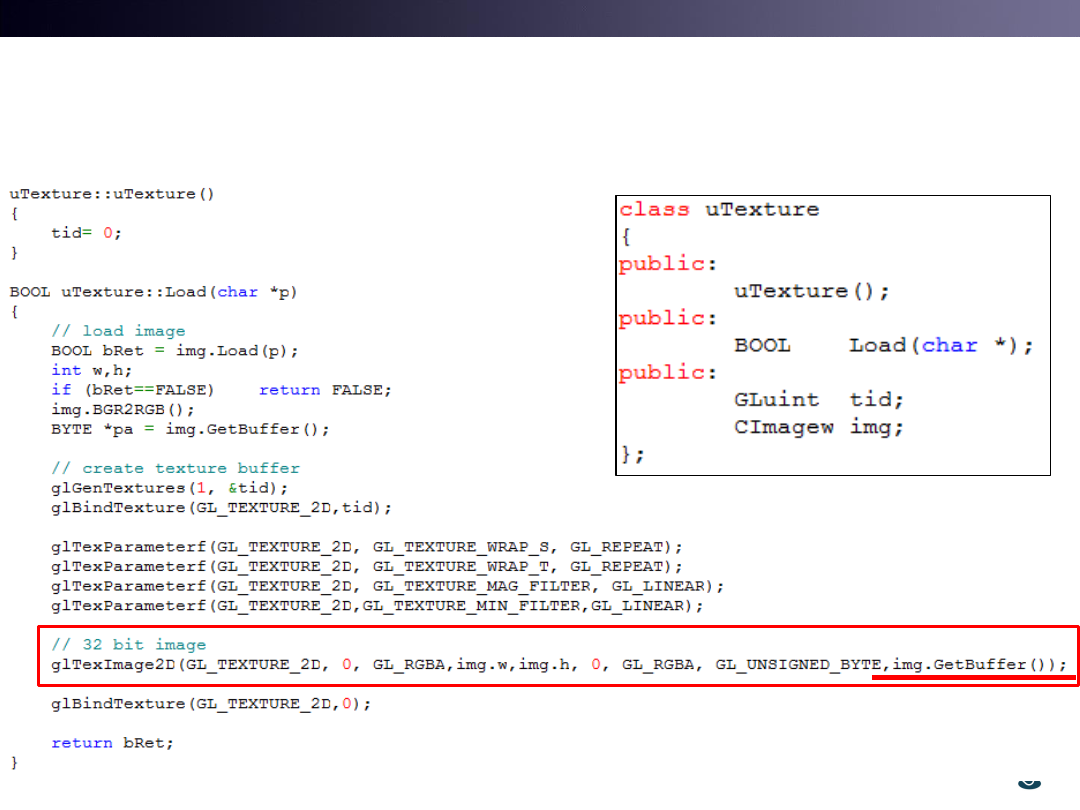

uTexture for Image Loading
23
Copy Image buffer into
GPU by handle, tid.
T&C LAB-AI
Robotics

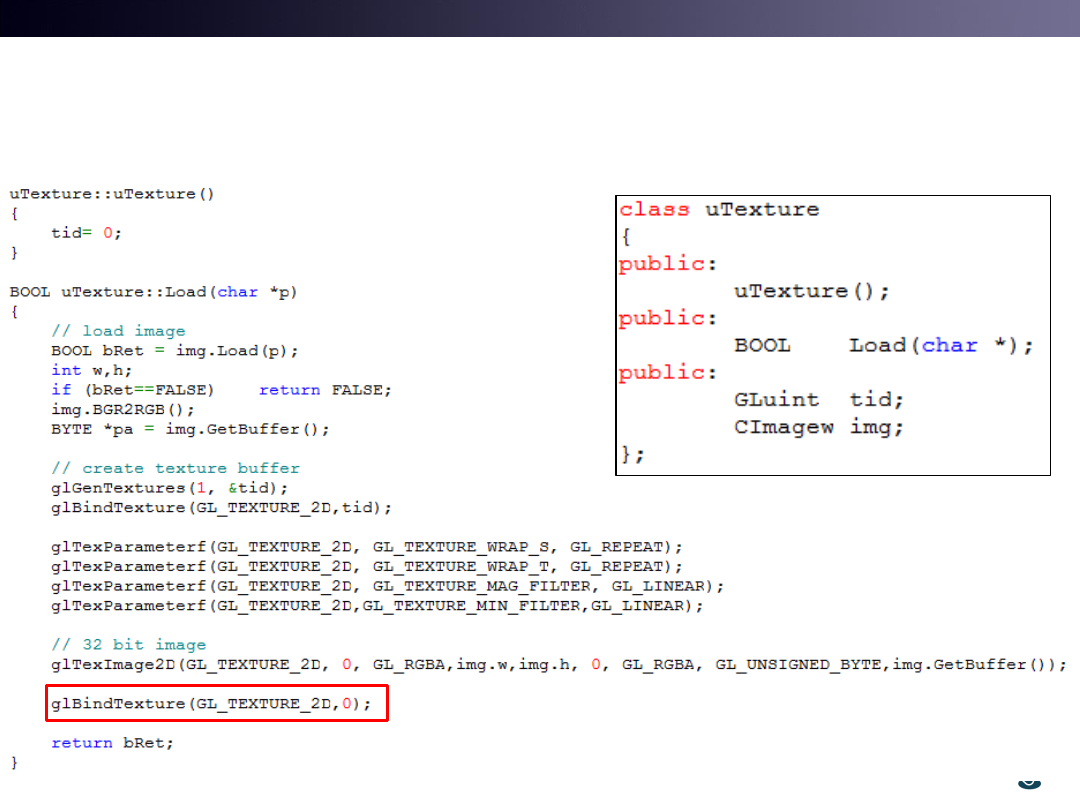

uTexture for Image Loading
24
Close Texture handle
T&C LAB-AI
Robotics
uWnd and uObj for Texture Mapping
• UV value for MakeBox and MakeCyl
25
Load
Image,
T&C LAB-AI
Robotics

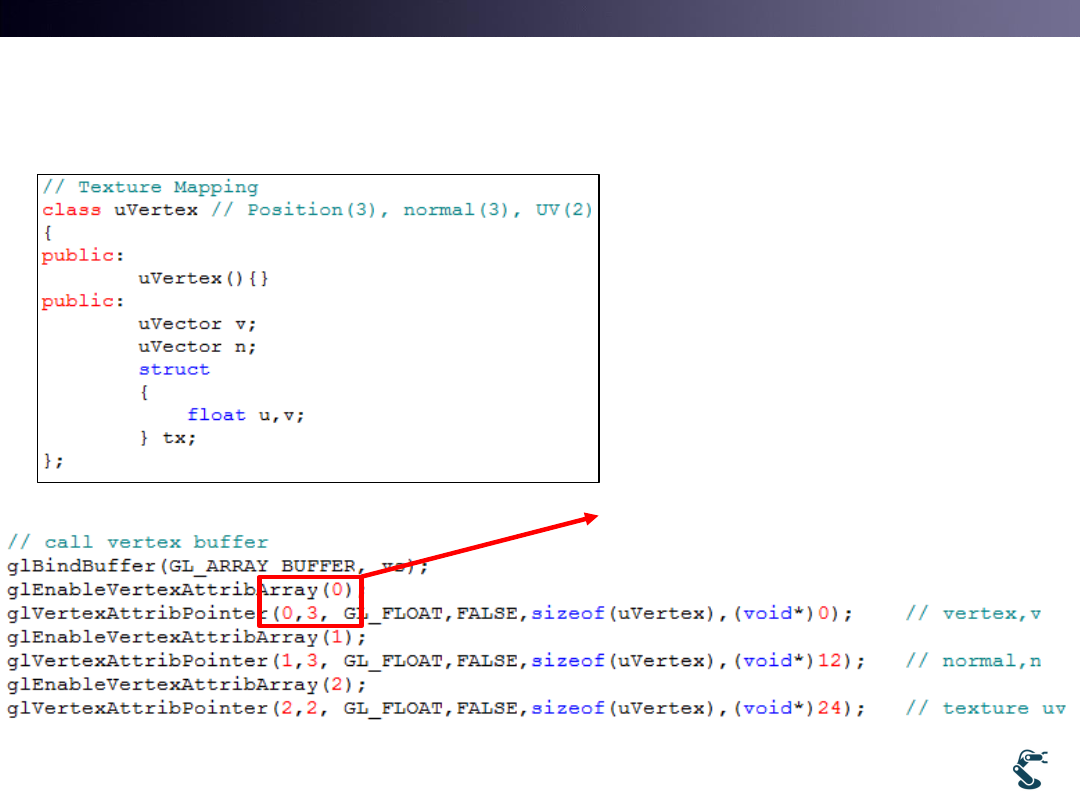

VBO for Texture Mapping
26
Position: (x,y,z) for 12 bytes
Normal: (x,y,z) for 12 bytes
UV: (u,v) for 8 bytes
0th Three elements
Position (x,y,z)
T&C LAB-AI
Robotics

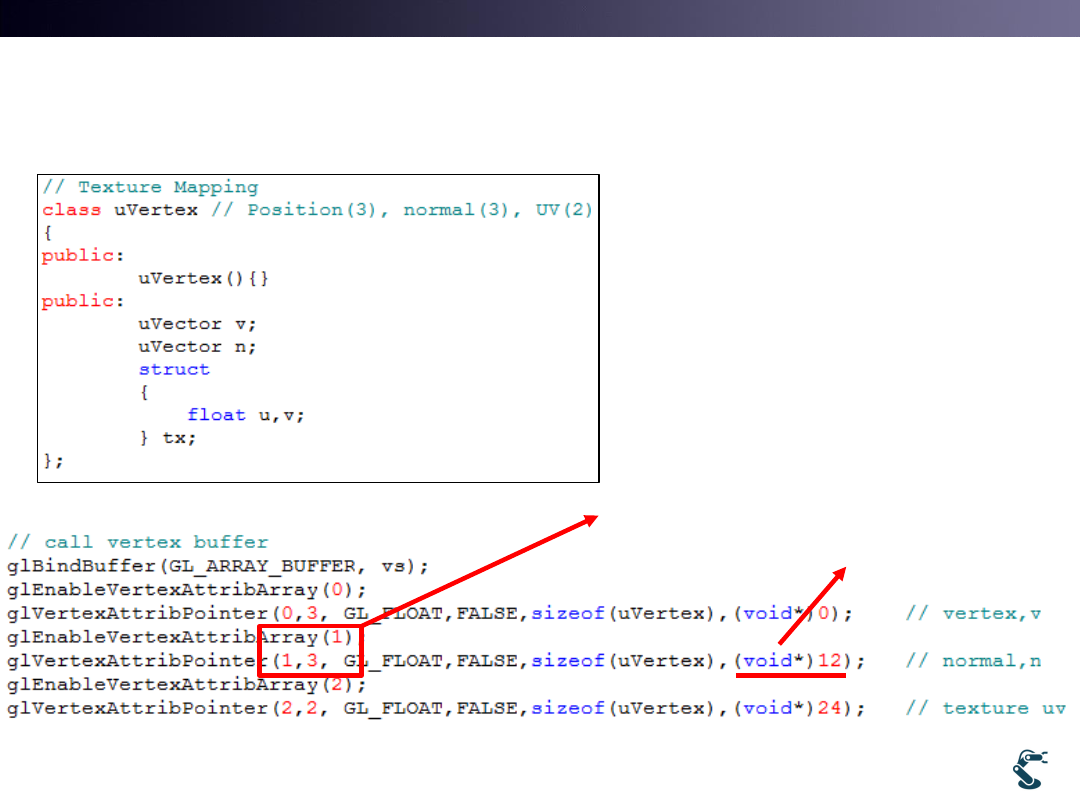

VBO for Texture Mapping
27
Position: (x,y,z) for 12 bytes
Normal: (x,y,z) for 12 bytes
UV: (u,v) for 8 bytes
1st Three elements
Normal (x,y,z)
After 12 bytes
from
Positon x,y,z
T&C LAB-AI
Robotics

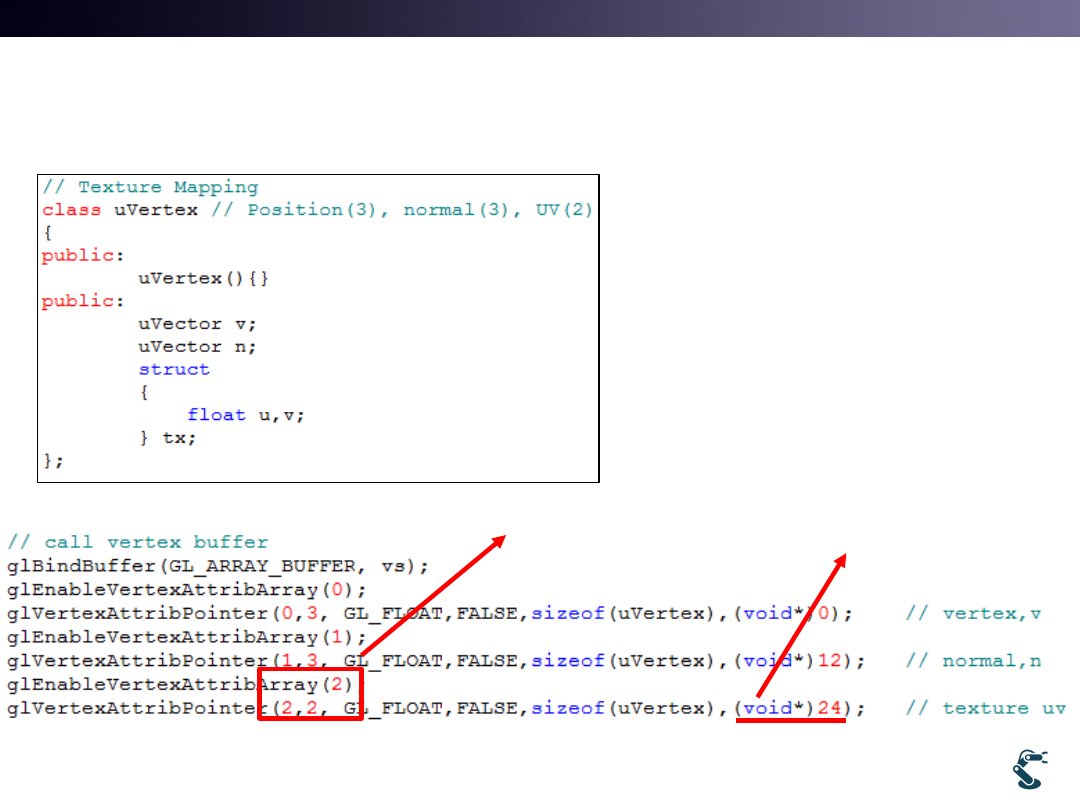

VBO for Texture Mapping
28
Position: (x,y,z) for 12 bytes
Normal: (x,y,z) for 12 bytes
UV: (u,v) for 8 bytes
2nd TWO elements
Textures (u,v)
After 24 bytes
Position(x,y,z)
+
Normal(x,y,z)
T&C LAB-AI
Robotics

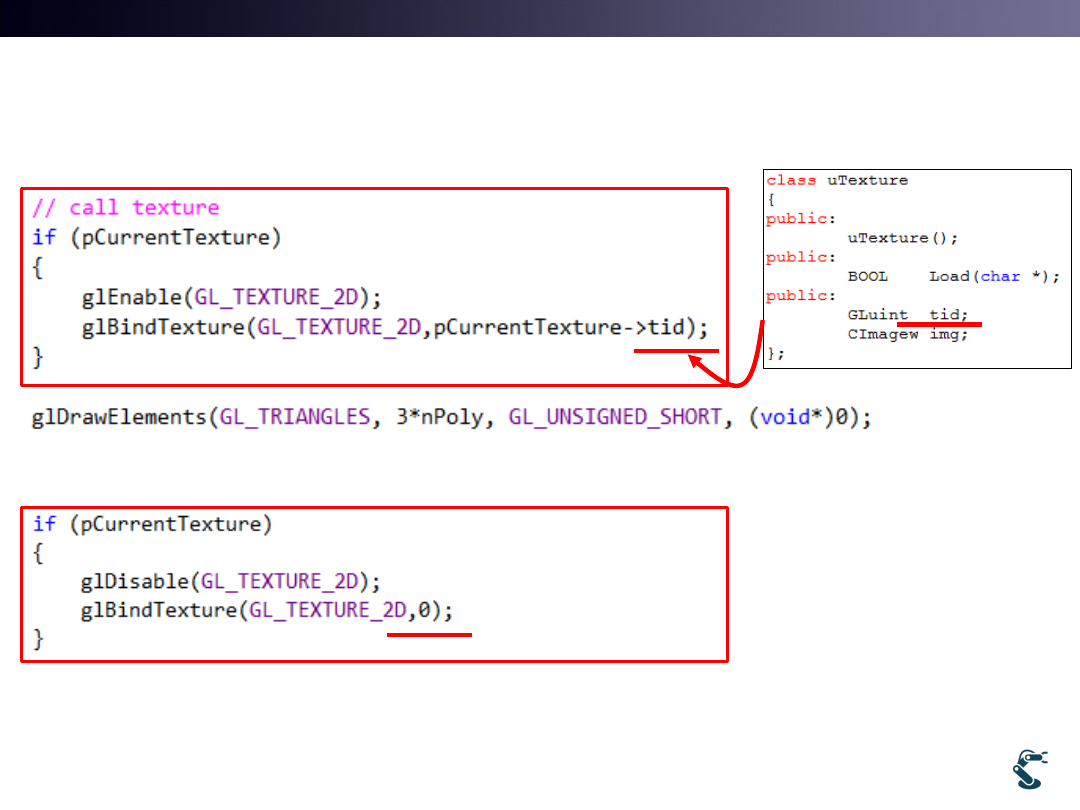

uObj::Draw() for Drawing Texture
29
Bind texture handle
Unbind texture handle
T&C LAB-AI
Robotics
UV value is defined as
Normalized Image Position
• Image pixel coordinate
• Normalized Position by U and V
30
(x,y)=(0,0)
(511,511)
(u,v)=(0,0)
(1,1)
(1,0)
(0,1)
T&C LAB-AI
Robotics

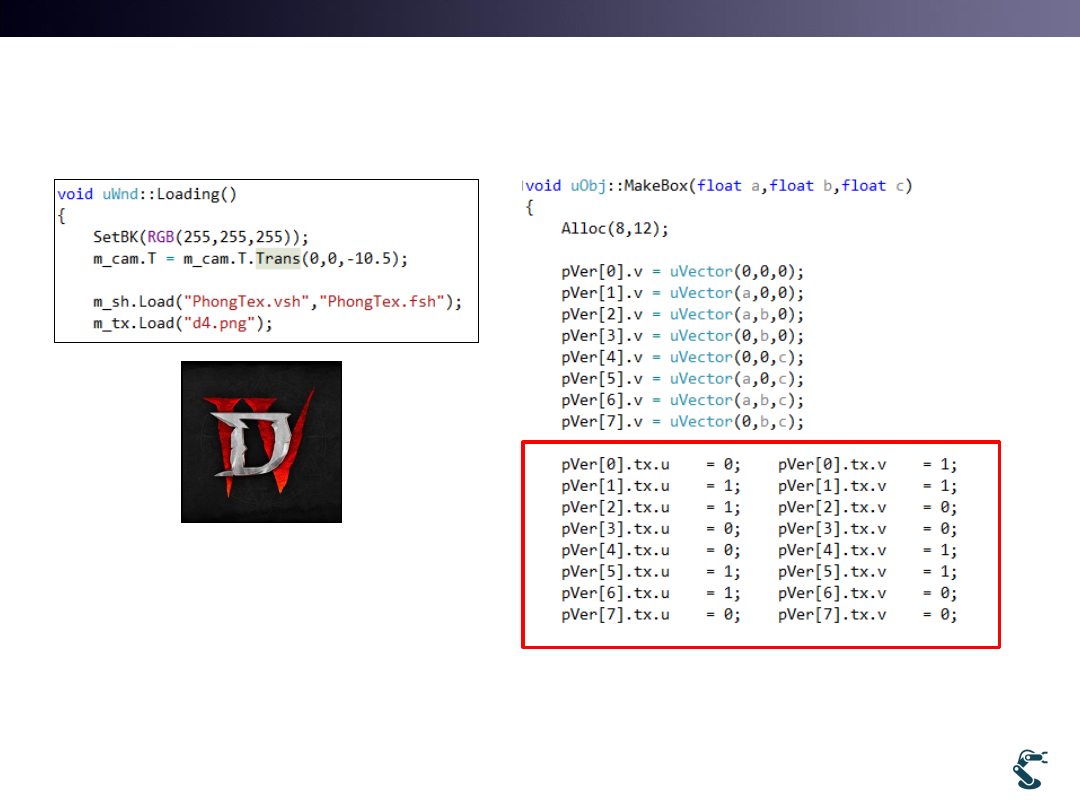

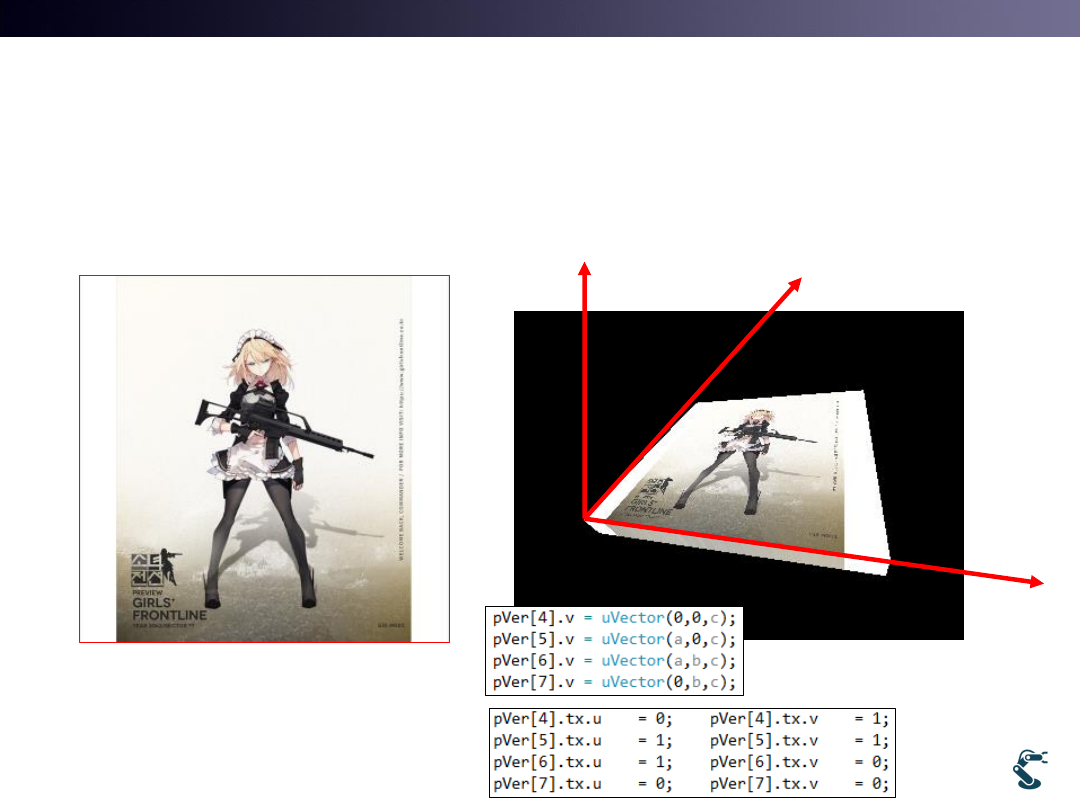

Ex) uGL-20-TextureMapping
• Original Image MakeBox(10,10,1)
31
Width=1024
Height=1024
x
y
z
4(0,0,c)
6(a,b,c)
5(a,0,c)
7(0,b,c)
UV=(0,1)
(0,0)
(1,0)
(1,1)
T&C LAB-AI
Robotics
Ex) uGL-20-TextureMapping
• It looks somewhat Unusual. Why?
32
Why?
(0,1)
(1,1)
(0,1)
(1,1)
T&C LAB-AI
Robotics

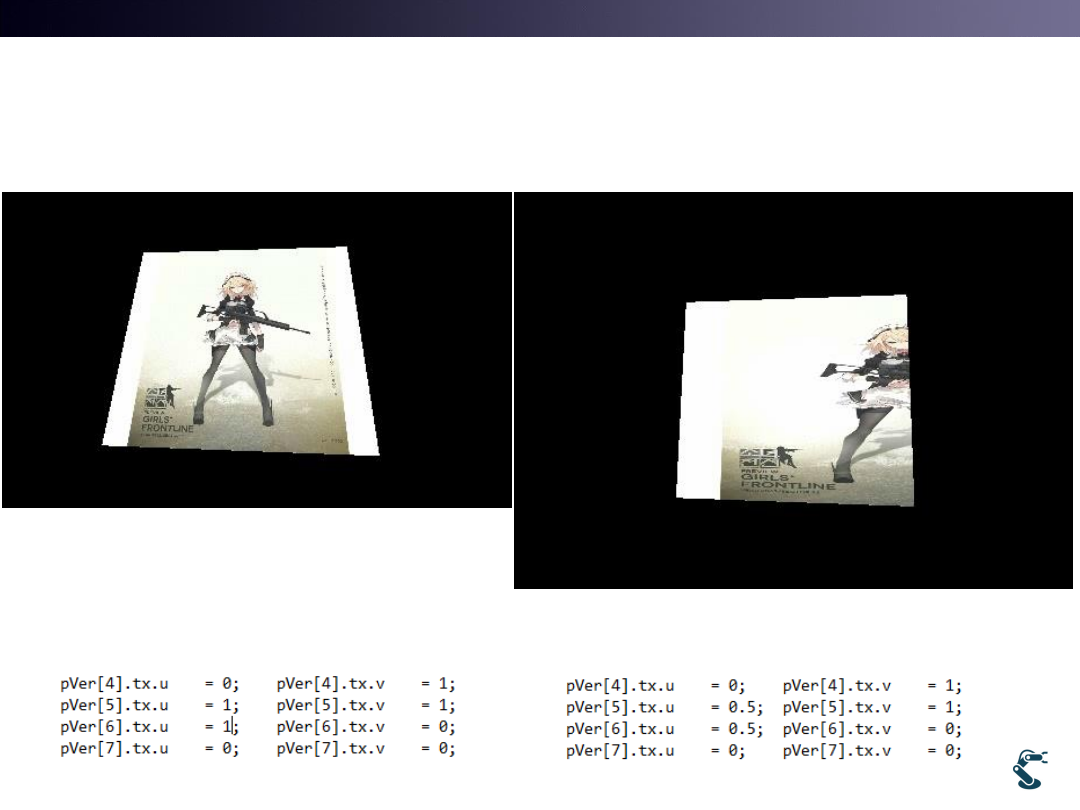

UV Tricks
ex) uGL-20-TextureMapping2
33
Original
U= 1 at right
U=0.5 at right
T&C LAB-AI
Robotics
Features of Texture Mapping
• Images are wrapped and skewed by UV map
– Use uGL-20-TextureMapping, testG36-big.exe
34
Original
Skewed examples
Camera walking
is based on
Perspective Projection,
Which is
Non Euclidean
Transform.
Big head
Long Legs
T&C LAB-AI
Robotics

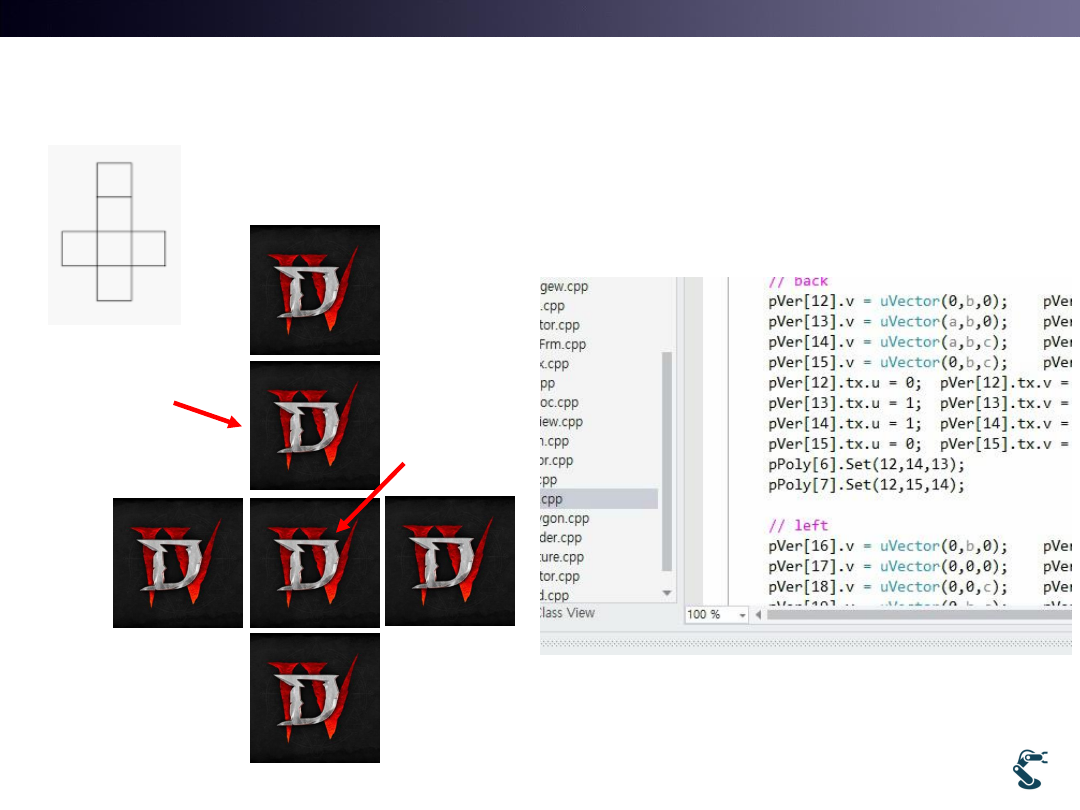

Ex) UV setting ( 24 vertices)
uGL-21-TX-box
35
TOP
(Initial
View)
Back
Front
Left
Right
Bottom
T&C LAB-AI
Robotics
Special Point of OpenGL Texture
• Keep in your mind.
• Every Dimension of OpenGL Texture MUST be
power of 2.
– D4.png, width and height =512=2^9
– G36.png, width and height = 1024 = 2^10
• Texture with width = 512 and height=1024 is also
Good.
36
T&C LAB-AI
Robotics
Meaning of that
Vertices in a Polygon are NOT Duplicated
• Each Polygon has its own vertices.
– UV mappings and Normal vectors are not used for other polygon
• Important features for Shading and UV Mapping
– Flat and Gouraud shadings require Independent Normal Vectors
– UV mapping also requires their own vertices for polyogns
37
Duplicated vertex
NON-Duplicated vertex
T&C LAB-AI
Robotics

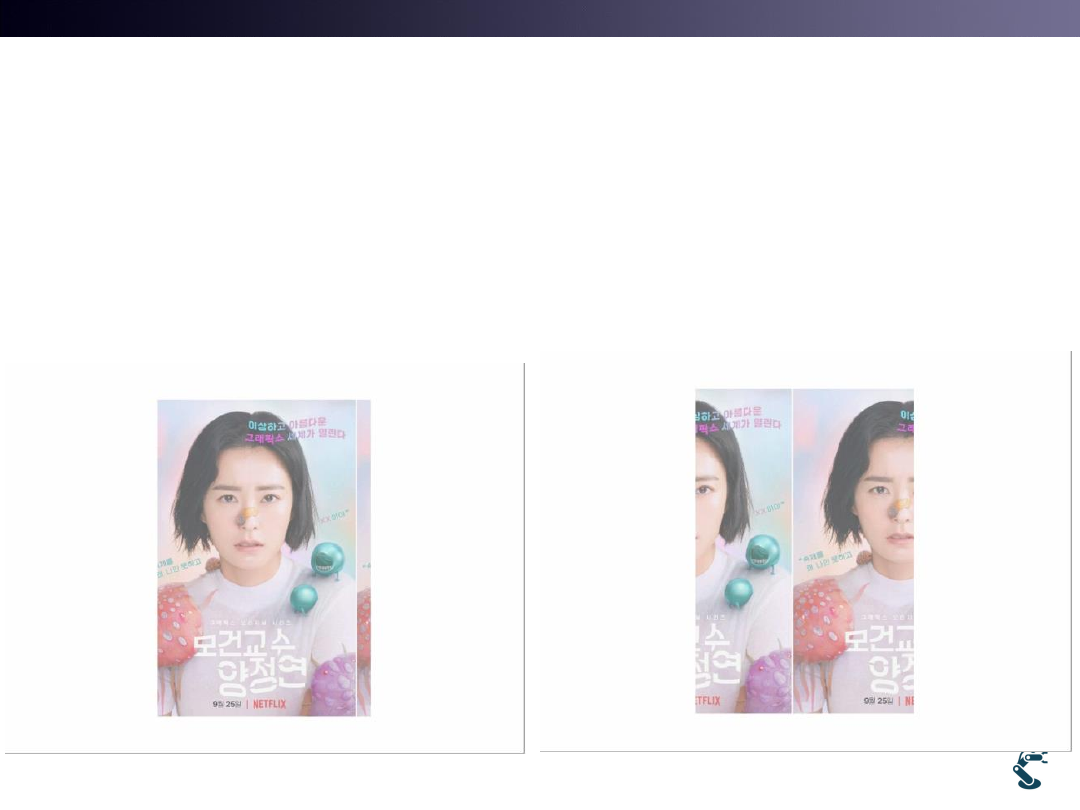

Meaning of that
Vertices in a Polygon are NOT Duplicated
ex) uGL-47-Morgan-Prof 1 and 2
38
U = U +0.01
T&C LAB-AI
Dynamic Drawing
(Dynamic Vertex in OpenGL)
3
39
T&C LAB-AI
Robotics
OpenGL has
Two Types for Object Building in GPU
• Static Mode
– Data with vertex and element(face) are INVARIANT
• Dynamic Mode
– Data with vertex and element are Varying.
– Update again with modified vertex (ReUpdate())
40
T&C LAB-AI
Robotics

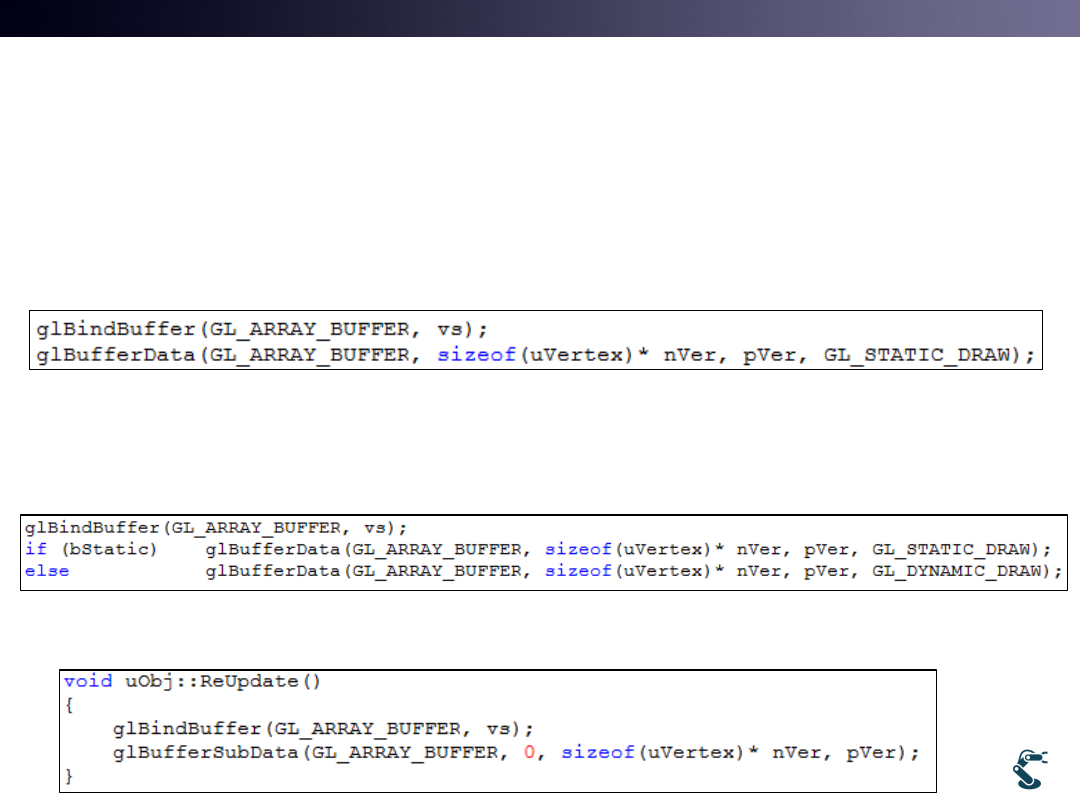

Concept of Dynamic Vertex
• Static Mode
• Dynamic Mode
41
Update()
glBufferData
pVer GPU
GPU
Vertex memory
H
H
Fixed
Rendering
pVer[0].v=…
Update()
glBufferData
pVer GPU
GPU
Vertex memory
H
H
Rendering
pVer[0].v=…
glBufferSubData
Update is Not possible
ReUpdate is Possible
T&C LAB-AI
Robotics

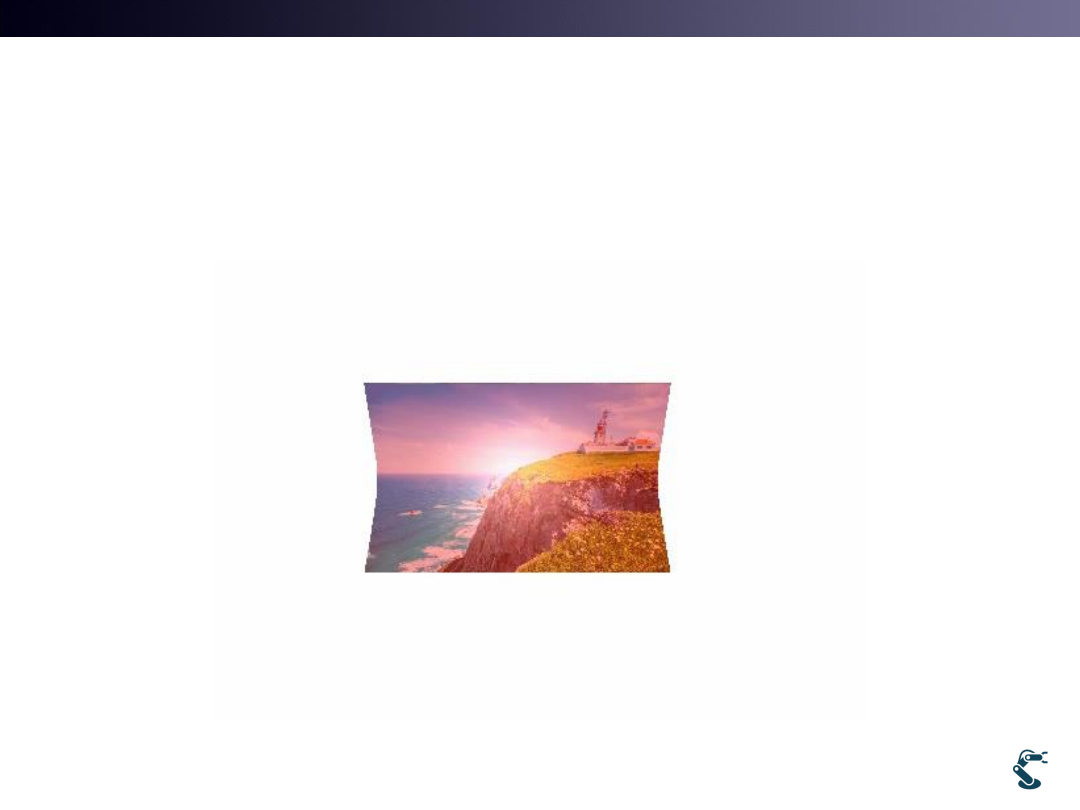

Ex) uGL-22-TX-Dynamic
• Use wallpaper.png(32bit)
• What’s wrong?
42
Normal vector must be changed
T&C LAB-AI
Robotics
Change of Normal Vector
in Dynamic Mode
43
